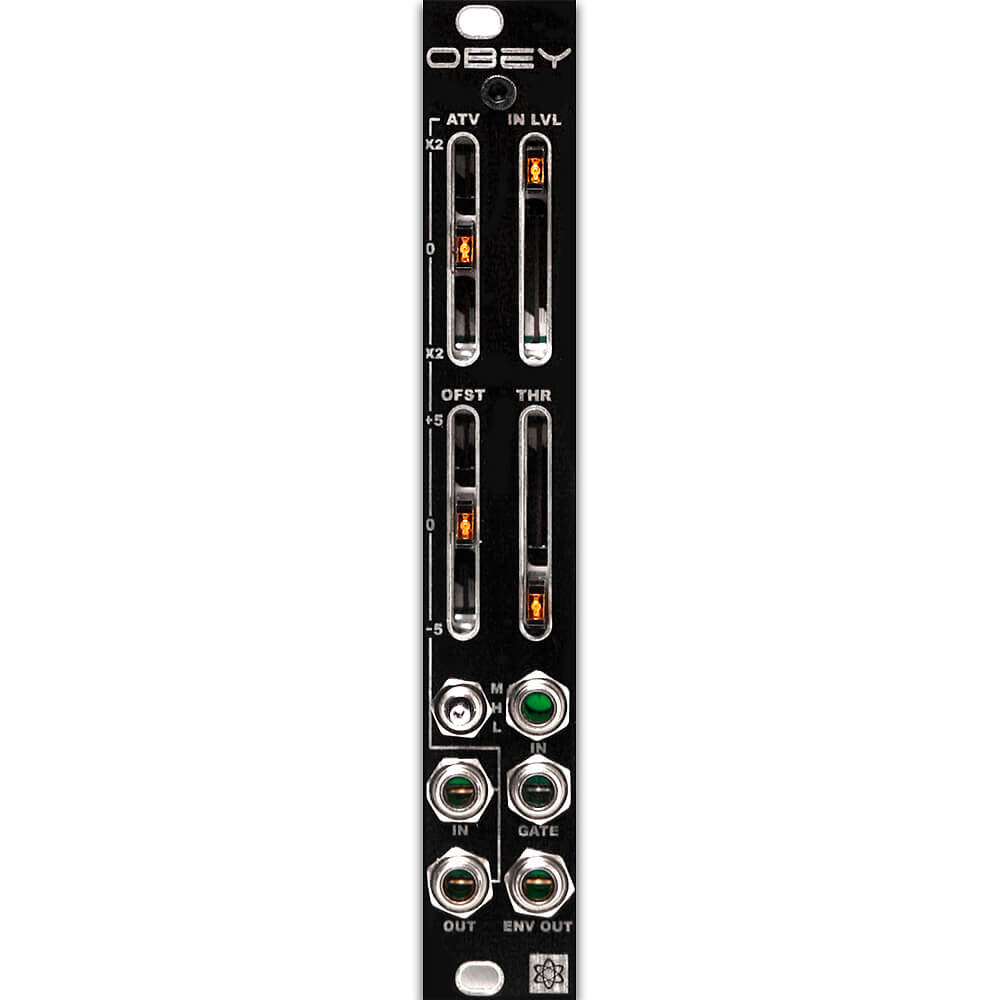

OBEY is a dual-function module: one half envelope follower and one half attenuverter / offset generator.

Envelope Follower:
The OBEY takes an audio or CV signal and uses it to trigger an envelope or gate for use in a Eurorack system. It is designed to work with a wide variety of input levels: plug a Eurorack module, passive microphone, piezo, guitar, drum machine, Game Boy into your Eurorack system.

Attenuverter / Offset Generator:
Attenuvert your voltage sources up to two times in the positive or negative! The offset generator provides up to 5 volts in the positive or negative.

Specifications:

• Module width: 4HP
• Module depth: 48mm
• Current draw:
  • +12V: 25mA
  • -12V: 18mA
