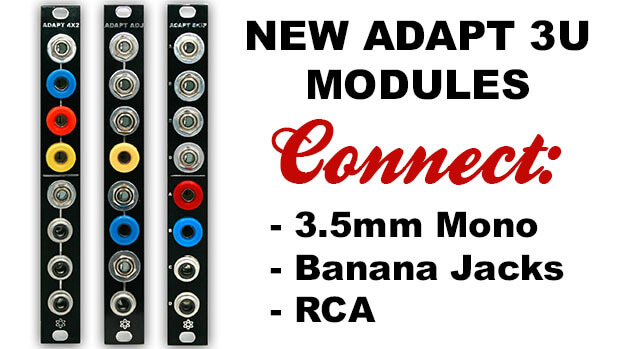

The ADAPT series of modules use an original Synthrotek footprint designed to take 3.5mm mono, RCA and banana jacks in any position! Mix and match to easily patch between different formats.

ADAPT 4×2:

The 4×2 is a passive mult with two 1 to 4 mults or one 1 to 7 mult. There is a jumper on the back that, when bridged, will make the channel 2 input jack an output jack. If a 3.5mm jack is used for the channel 2 input and the jumper on back is NOT bridged, the channel 2 input will normal to channel 1. (An RCA or banana jack won’t normal because they are not switched jacks).

ADAPT ADJ:

The ADJ has four 1 to 1 sections, ideal for converting four signals from one format to another. In addition, any 3.5mm input jack in sections 2-4 will normal to the input directly above it. (If an RCA or banana jack is used as an input jack in sections 2-4, they will NOT normal to the input directly above because they are not switched jacks.)

ADAPT SKIP:

The SKIP has four 1 to 1 sections, ideal for converting four signals from one format to another. The inputs are at the top, the outputs at the bottom. Any 3.5mm input jack in sections B, C or D will normal to the input directly above it. (If an RCA or banana jack is used as an input jack in sections B-D, they will NOT normal to the input directly above because they are not switched jacks.)
